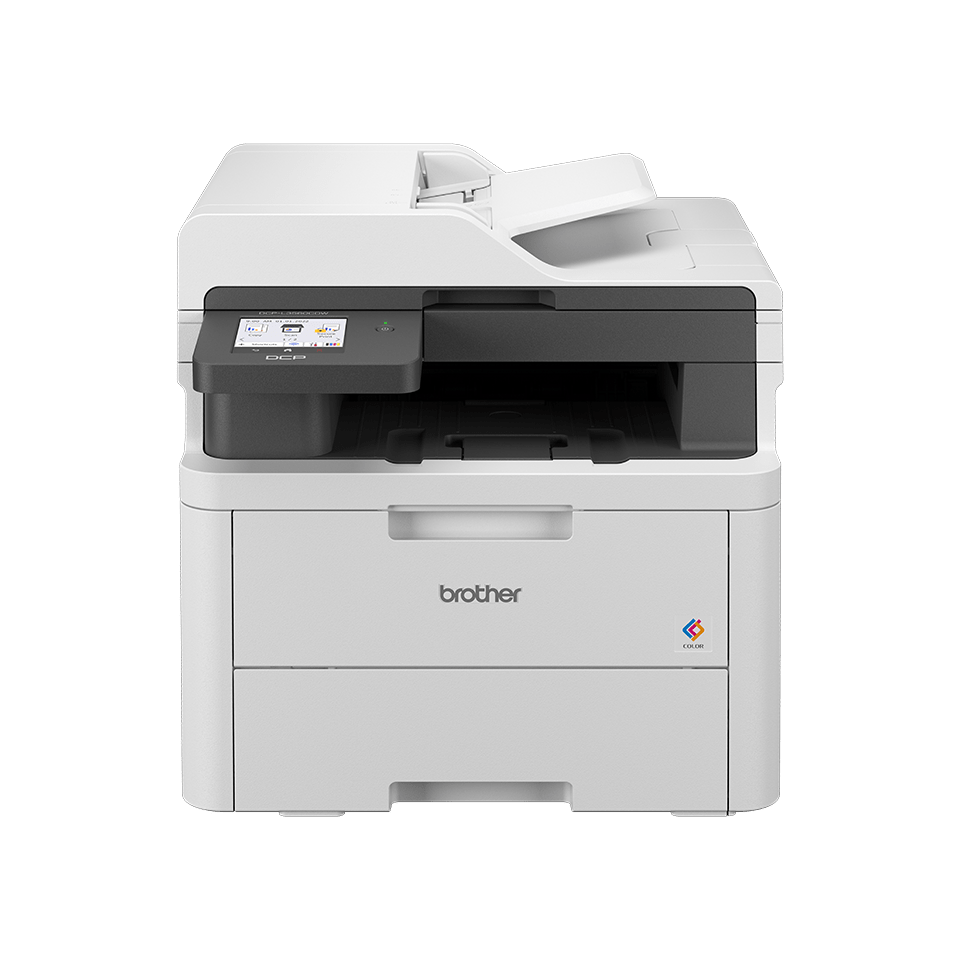

DCP-L3560CDW Colour Laser A4 Multi-Function Printer

Key Features
\n
\n
- Colour and mono (black and white) printing
\n
- Automatic 2-sided A4 print, single-sided copy and scan
\n
- Print speeds up to 26 pages per minute (based on ISO/IEC 24734)
\n
- 8.76cm thin-film-transistor (TFT) colour LCD touchscreen
\n
- 50-sheet automatic document feeder (ADF)
\n
- Optional high yield toner cartridges to reduce printing costs
\n

Combining outstanding performance with fast print speeds, minimal maintenance, and long-lasting supplies. The compact, whisper-quiet DCP-L3560CDW has been expertly engineered to feature the latest industry-standard security. Be confident that this colour LED will meet the needs of your home or small office with ease. \n \n  \n \n
\n

\n
\n \n Quiet without compromise \n \n Engineered to print quietly while delivering speeds up to 25% faster than the previous generation, so you can print continuously without distraction and focus on your work. \n \n
\n

\n

\n
\n \n Designed to go the distance \n \n Built to perform for longer, made from robust and hard-wearing materials and supported by outstanding service as standard. Delivers uncompromised performance at all times. \n \n
\n

\n
\n \n Secure by design \n \n Keep pace with the ever-evolving legislation on privacy and data security - our devices offer the latest industry-standard security features to securely protect your data. Robust features include triple-layer security at a device, network and document level which is verified through external security certification. \n \n
\n

\n
\n \n Compact and expertly engineered \n \n Our most compact colour range delivers high-quality outputs in a small footprint, allowing you to make the most of your space. Every component has been optimised to reduce the overall size of the device without compromising on performance. \n \n
\n
Features and Specifications
\n
\n
\n
\n
\n
General
\n
\n
\n
\n
\n
\n
\n
\n
Printer type
\n: Colour
\n
\n
\n
Function
\n: Print, Copy, Scan
\n
\n
\n
Display
\n: Colour touchscreen
\n
\n
\n
Display size
\n: 8.76cm TFT Colour LCD touchscreen
\n
\n
\n
Max paper size
\n: A4
\n
\n
\n
Memory
\n: 512MB
\n
\n
\n
Processor
\n: MAIN:Cortex-A53 800MHz Sub: ARM946 133MHz
\n
\n
\n
Technology
\n: LED
\n
\n
\n
Number of shortcuts
\n: 48
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Connectivity
\n
\n
\n
\n
\n
\n
\n
\n
Connectivity
\n: Wired Network, Wireless, USB
\n
\n
\n
NFC
\n: No
\n
\n
\n
USB interface
\n: Hi-speed USB 2.0 interface for connecting to a computer
\n
\n
\n
Wi-Fi Direct
\n: Yes
\n
\n
\n
Wired network interface
\n: Ethernet 10Base-T/100Base-TX/1000Base-T
\n
\n
\n
Wireless network interface
\n: Wireless LAN 2.4GHz and 5GHz. Infrastructure Mode: IEEE 802.11b/g/n, IEEE 802.11a/n, Wi-Fi Direct: IEEE 802.11g/n, IEEE 802.11a/n.
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Mobile connectivity
\n
\n
\n
\n
\n
\n
\n
\n
Supported
\n: Air Print, Mopria™, Wi-Fi Direct™
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Copying
\n
\n
\n
\n
\n
\n
\n
\n
2-sided copy
\n: No
\n
\n
\n
Resolution
\n: 600 x 600dpi
\n
\n
\n
Speed
\n: First copy out time from ready mode - less than 14.5 seconds (mono) and 15.5 seconds (colour)
\n
\n
\n
Colour A4 copy speed
\n: 26 copies per minute
\n
\n
\n
Mono A4 copy speed
\n: 26 copies per minute
\n
\n
\n
N in 1
\n: Yes (saves paper by copying two or four pages of your document onto one page of the copy)
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Dimensions & weights
\n
\n
\n
\n
\n
\n
\n
\n
Dimensions with carton
\n: 497 W x 536 D x 533 H mm
\n
\n
\n
Weight with carton
\n: 23.3 kg
\n
\n
\n
Dimensions without carton
\n: 410 W x 444 D x 401 H mm
\n
\n
\n
Weight without carton (includes toner & drum)
\n: 20.0 kg
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Energy Consumption
\n
\n
\n
\n
\n
\n
\n
\n
Printing
\n: 560 watts
\n
\n
\n
Deep sleep mode
\n: 0.6 watts
\n
\n
\n
Quiet mode (printing)
\n: 310 watts
\n
\n
\n
Ready mode
\n: 70 watts
\n
\n
\n
Sleep mode
\n: 10 watts
\n
\n
\n
Off
\n: 0.04 watts
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Environment
\n
\n
\n
\n
\n
\n
\n
\n
Operating humidity
\n: 20 - 80 %
\n
\n
\n
Operating temperature
\n: 10 - 32.5 degrees Celsius
\n
\n
\n
Storage humidity
\n: 35 - 85 %
\n
\n
\n
Storage temperature
\n: 0 - 40 degrees Celsius
\n
\n
\n
Sound power
\n: Printing: Mono: LWAc = 6.41 B(A) Colour: LWAc = 6.51 B(A), Quiet mode: LWAc = 5.79 B(A) (Mono) LWAc = 5.86 B(A) (Colour)
\n
\n
\n
Sound pressure
\n: Printing: Lp Am = 47 d B(A), Quiet mode: Lp Am = 43 d B(A)
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
In the box
\n
\n
\n
\n
\n
\n
\n
\n
Contents
\n: Inbox toner: BK: Approx. 1,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 1,000 pages in accordance with ISO/IEC 19798
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Media specifications
\n
\n
\n
\n
\n
\n
\n
\n
Types and sizes
\n: Standard tray: Plain Paper, Thin Paper, Thick Paper, Recycled Paper, A4, Letter, Legal, Mexico Legal, India Legal, Executive, A5, A5 Long Edge, A6, B5(JIS), B5(ISO), B6(JIS), A4 Short(270㎜), Folio, 16K(195x270mm)
\n
\n
\n
Weights
\n: Standard tray: 60 to 163gsm, duplex and ADF: 60 to 105gsm
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Network
\n
\n
\n
\n
\n
\n
\n
\n
Wi-Fi Direct™
\n: Yes
\n
\n
\n
Wired network
\n: Node type: NC-9700h type 2. Ethernet.
\n
\n
\n
Wired network security
\n: APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, POP3, IMAP4, FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
\n
\n
\n
Wireless network
\n: Node type: NC-9200w type2. Wireless LAN(2.4GHz & 5GHz)
\n
\n
\n
Wireless network security
\n: APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, POP3, IMAP4, FTP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec, WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only.
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Operating systems & software
\n
\n
\n
\n
\n
\n
\n
\n
Supported
\n: Windows Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11, Linux.
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Paper handling
\n
\n
\n
\n
\n
\n
\n
\n
Paper input
\n: Standard Tray: 250 sheets, Manual feed slot: 1 sheet, ADF: 50 sheets.
\n
\n
\n
Paper output
\n: 150 sheets Face Down (80gsm) 1 sheet face-up (straight paper path)
\n
\n
\n
Standard tray capacity
\n: 250 sheets
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Printing
\n
\n
\n
\n
\n
\n
\n
\n
A4 2-sided print speed
\n: Up to 10 sides per minute (based on ISO/IEC 24734)
\n
\n
\n
A4 standard print speed
\n: Up to 26 pages per minute (based on ISO/IEC 24734)
\n
\n
\n
Resolution
\n: 600 x 600 dpi, 2,400 dpi (600 x 2400) quality
\n
\n
\n
Automatic 2 sided print
\n: Yes
\n
\n
\n
Emulations
\n: PCL5e, PCL5c, PCL6（PCL XL Class3.0, BR-Script3, PDF Version 1.7, XPS Version 1.0
\n
\n
\n
First print out time
\n: Less than 13.5 seconds
\n
\n
\n
Recommended monthly volume
\n: Up to 1,500 pages
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Scanning
\n
\n
\n
\n
\n
\n
\n
\n
2-Sided scan
\n: No
\n
\n
\n
Resolution
\n: Glass(Optical): Max 1200 x 1200 dpi, ADF(Optical): Max 600 x 600 dpi, Resolution (Interpolated): Max. 19,200 x 19,200 dpi
\n
\n
\n
Scan to
\n: Email, Image, OCR, File, FTP, FTPS, Network (Windows only).
\n
\n
\n
Speed
\n: 27/21 ipm (A4 mono/colour) In accordance with ISO/IEC17991
\n
\n
\n
Scanner type
\n: CIS
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Security features
\n
\n
\n
\n
\n
\n
\n
\n
Active directory authentication (user authentication)
\n: Yes
\n
\n
\n
Firmware encryption
\n: Yes
\n
\n
\n
LDAP authentication (user authentication)
\n: Yes
\n
\n
\n
Secure boot
\n: Yes
\n
\n
\n
Setting lock
\n: Yes
\n
\n
\n
Store Print Log
\n: Print Log to Network
\n
\n
\n
Syslog
\n: Yes
\n
\n
\n
\n

\n
\n
\n
\n
\n
\n
\n
Supplies and accessories
\n
\n
\n
\n
\n
\n
\n
\n
High-yield toner
\n: TN258XL: BK: Approx. 3,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 2,300 pages in accordance with ISO/IEC 19798
\n
\n
\n
Inbox toner
\n: BK: Approx. 1,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 1,000 pages in accordance with ISO/IEC 19798
\n
\n
\n
Standard toner
\n: TN258: BK: Approx. 1,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 1,000 pages in accordance with ISO/IEC 19798
\n
\n
\n
Supplies
\n: Drum Unit DR258CL: Approx. 20,000 pages (1page/job) Approx. 30,000 pages (3page/job), Belt Unit BU229CL: Approx. 50,000 pages (2 pages/job) Approx. 60,000 pages (3 pages/job), Waste Toner WT229CL: Approx. 50,000 pages (5 pages/job)
